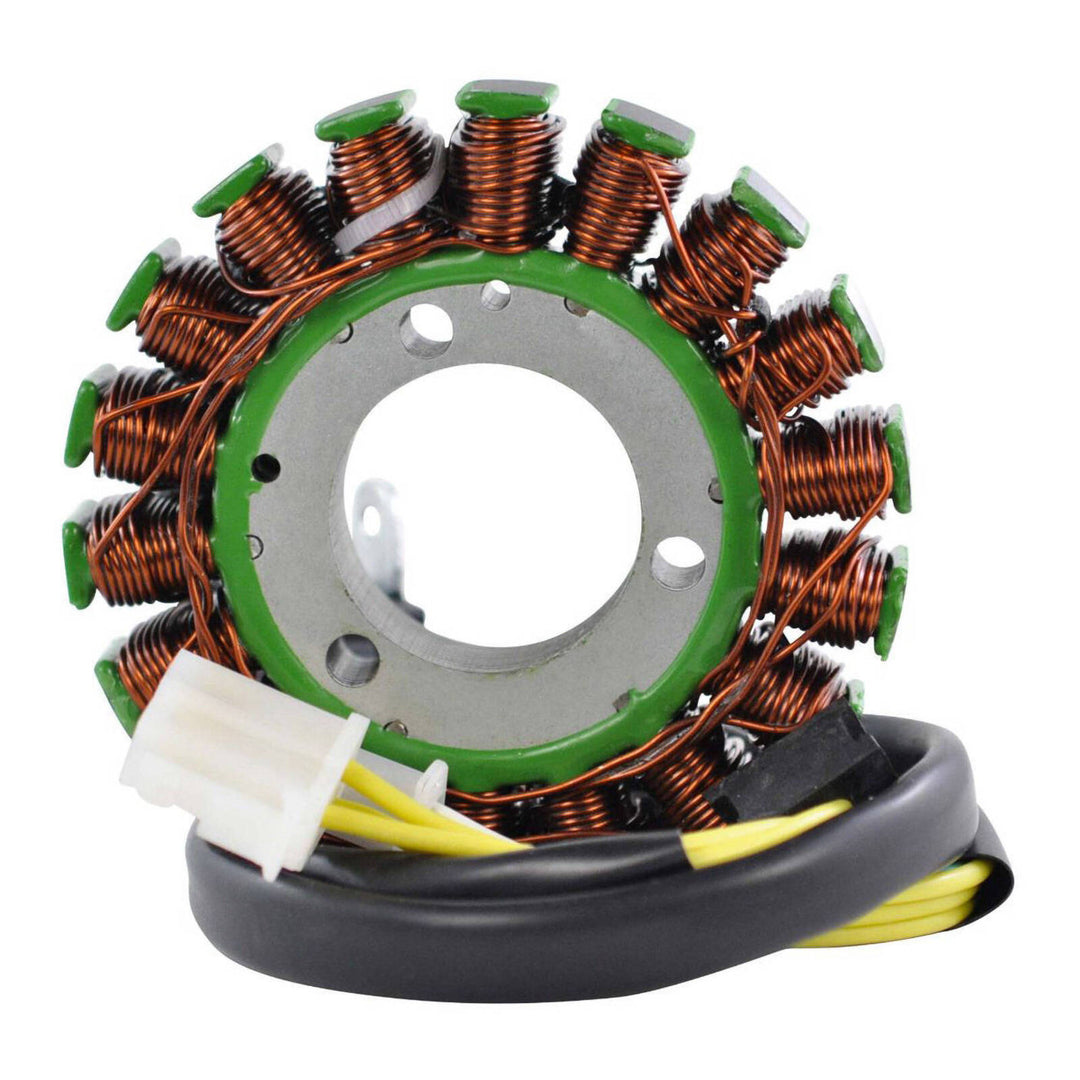

GENERATOR STATOR SUZ SV650 99-02 (RM01569)

RMS01569

Regular price $309.99
/
Tax included.

Plug-and-play replacement generator stator from RM Stator. See fitment guide for model details.



Dimensions:

  • Interio r diameter: 38mm
  • Exterior diameter: 105mm
  • Thickness: 19mm
  • Length of wires stator to grommet: 120mm
  • Length of wires grommet to plug: 650mm
  • Length of pickup coil's wire to grommet: 60mm



Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Wire to wire resistance:
    • Alternator: Yellow to Yellow = 0.7 ohms +-20%
    • Pickup: Green to White = 195 ohms +/- 20%



Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
