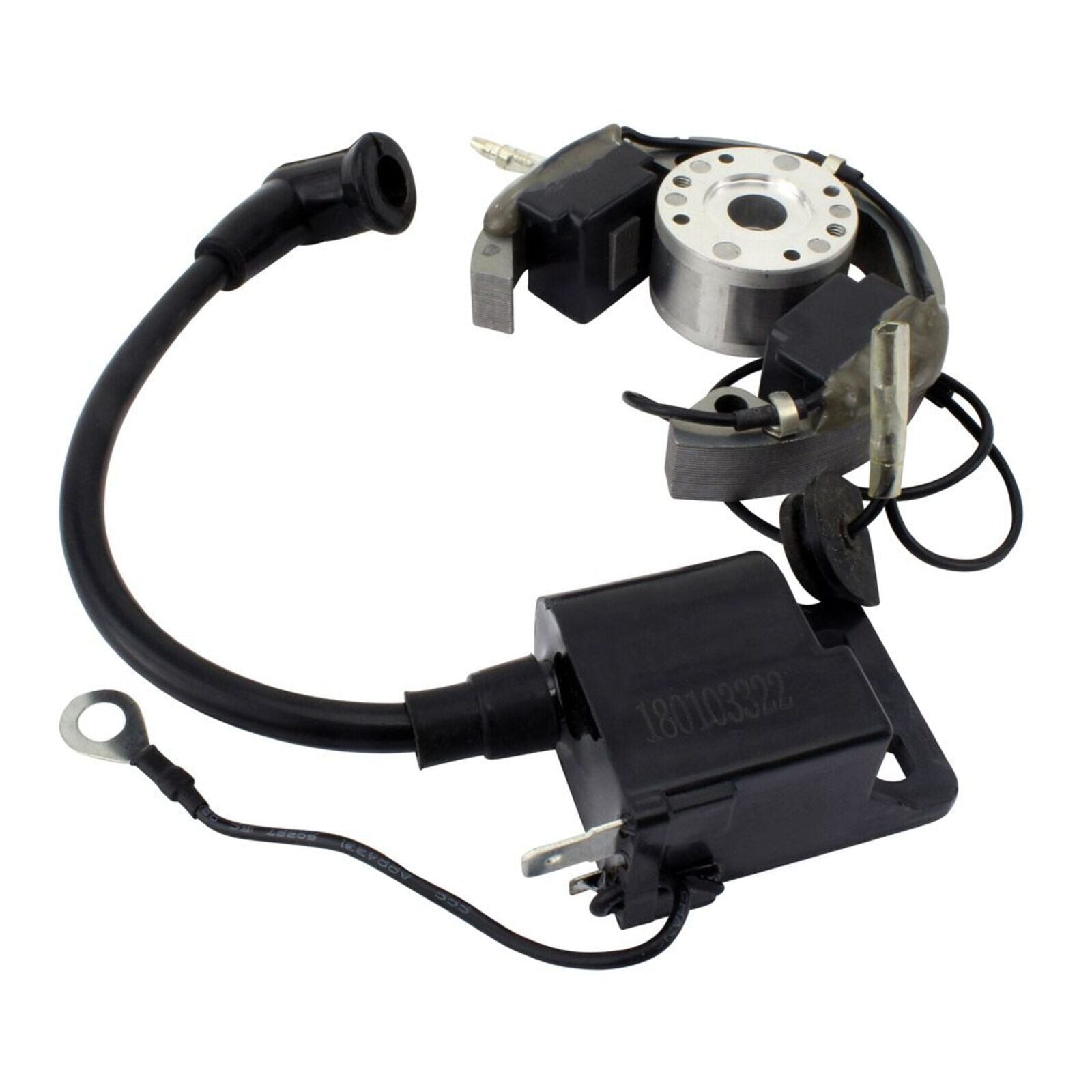

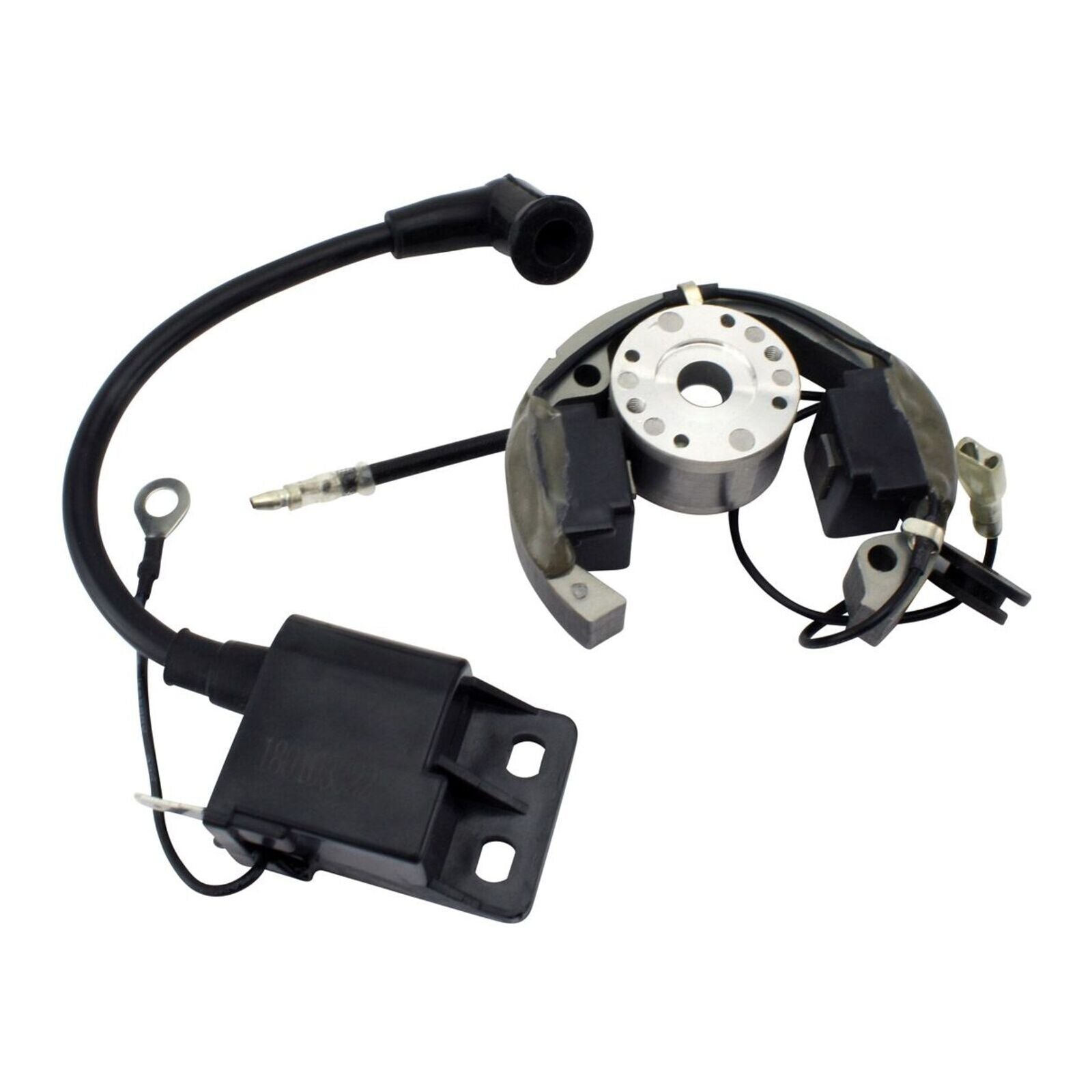

Brand new aftermarket stator + rotor + ignition coil. Direct replacement to your original unit.
-
Plug-and-play, direct fit, easy installation
-
All products shipped are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

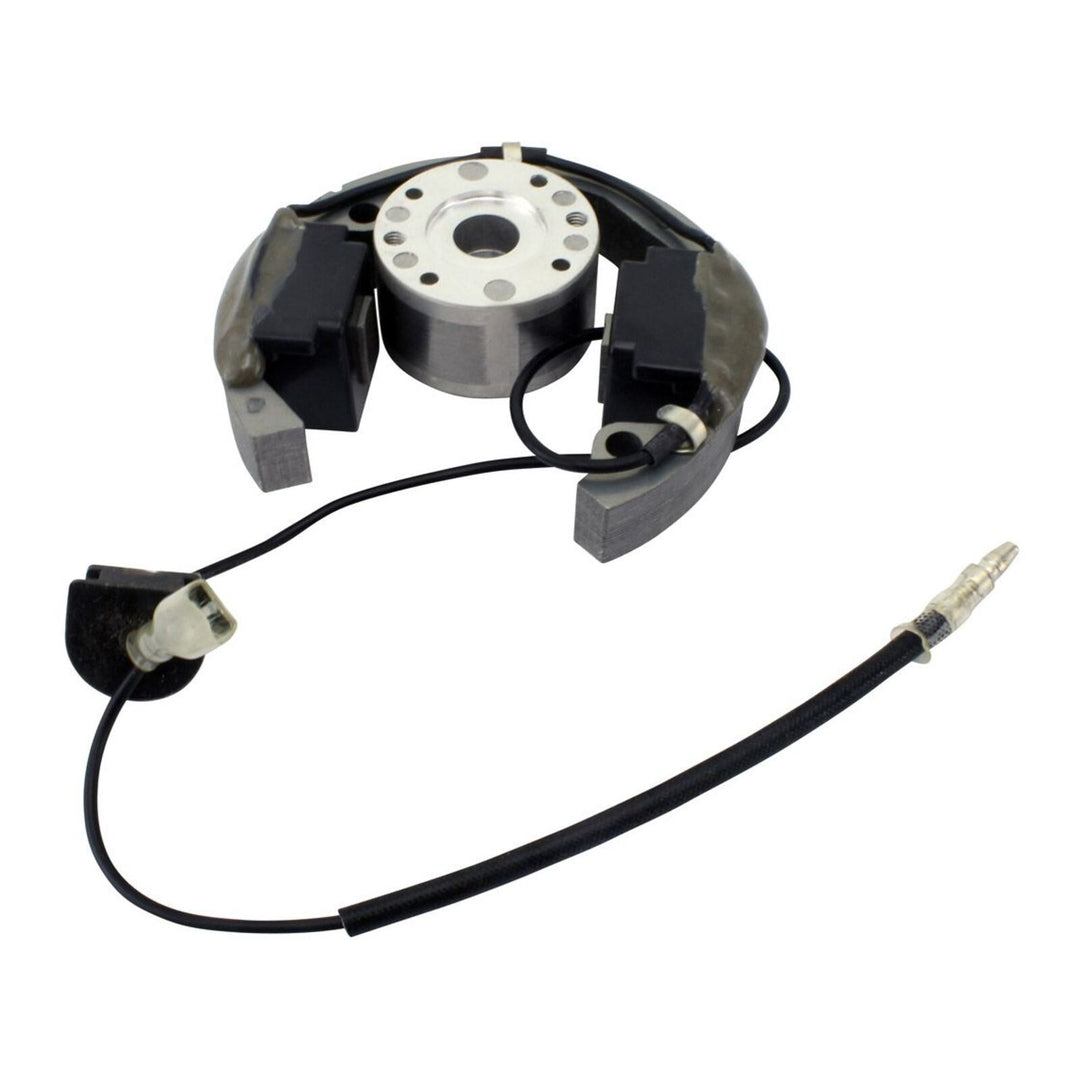

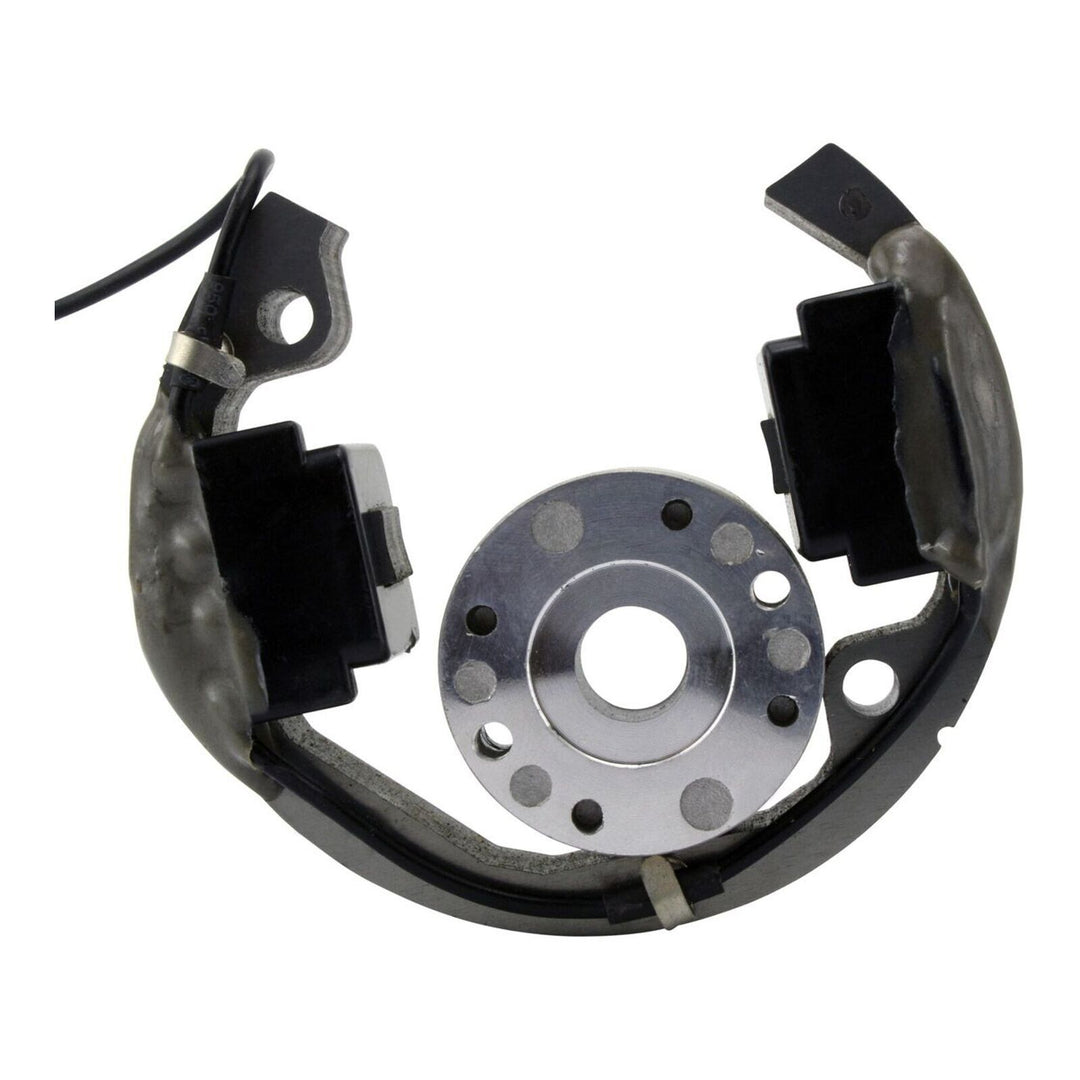

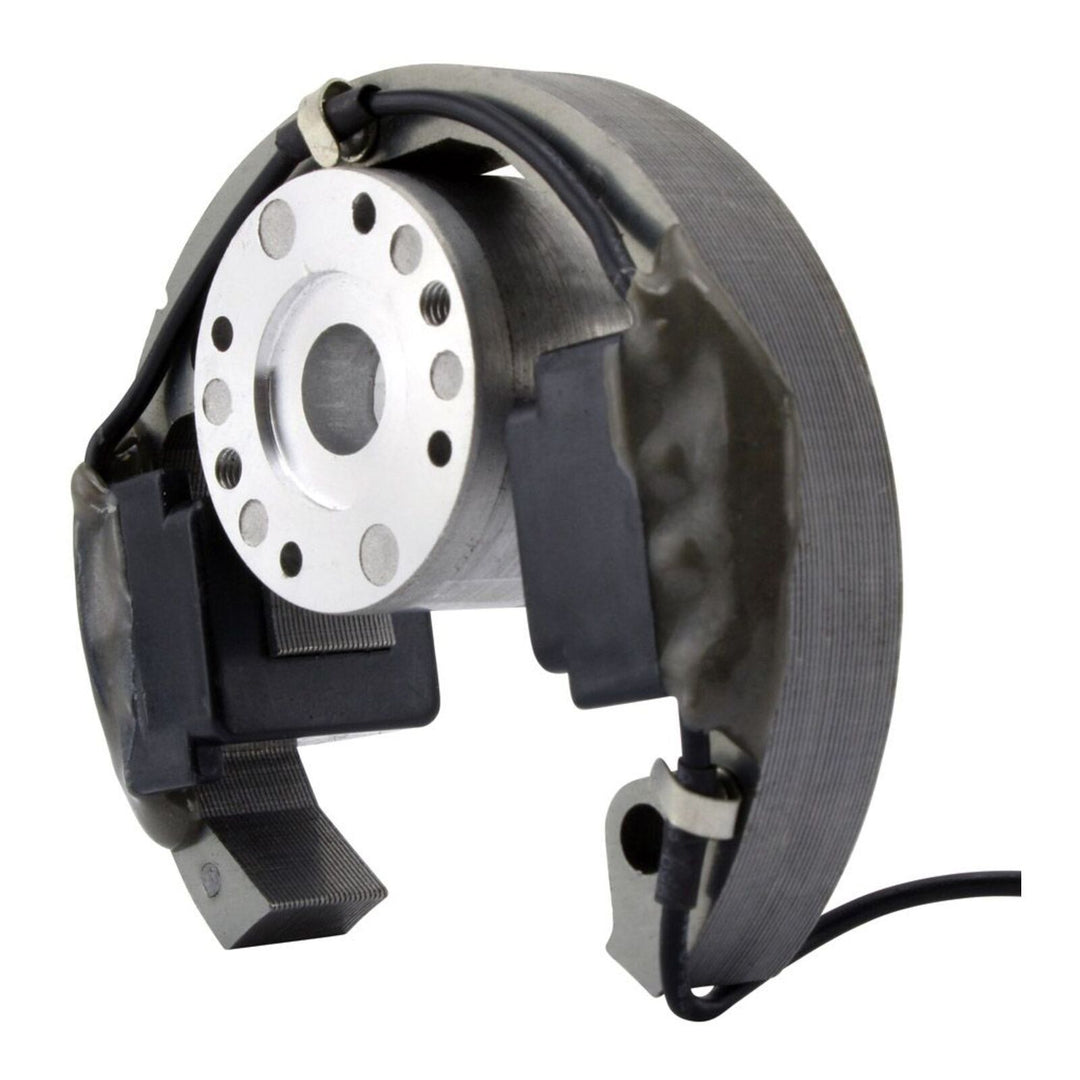

Stator :
-
Highest grade of lamination materials
-
Highest grade of copper winding, resistant to 200 degrees Celsius
-

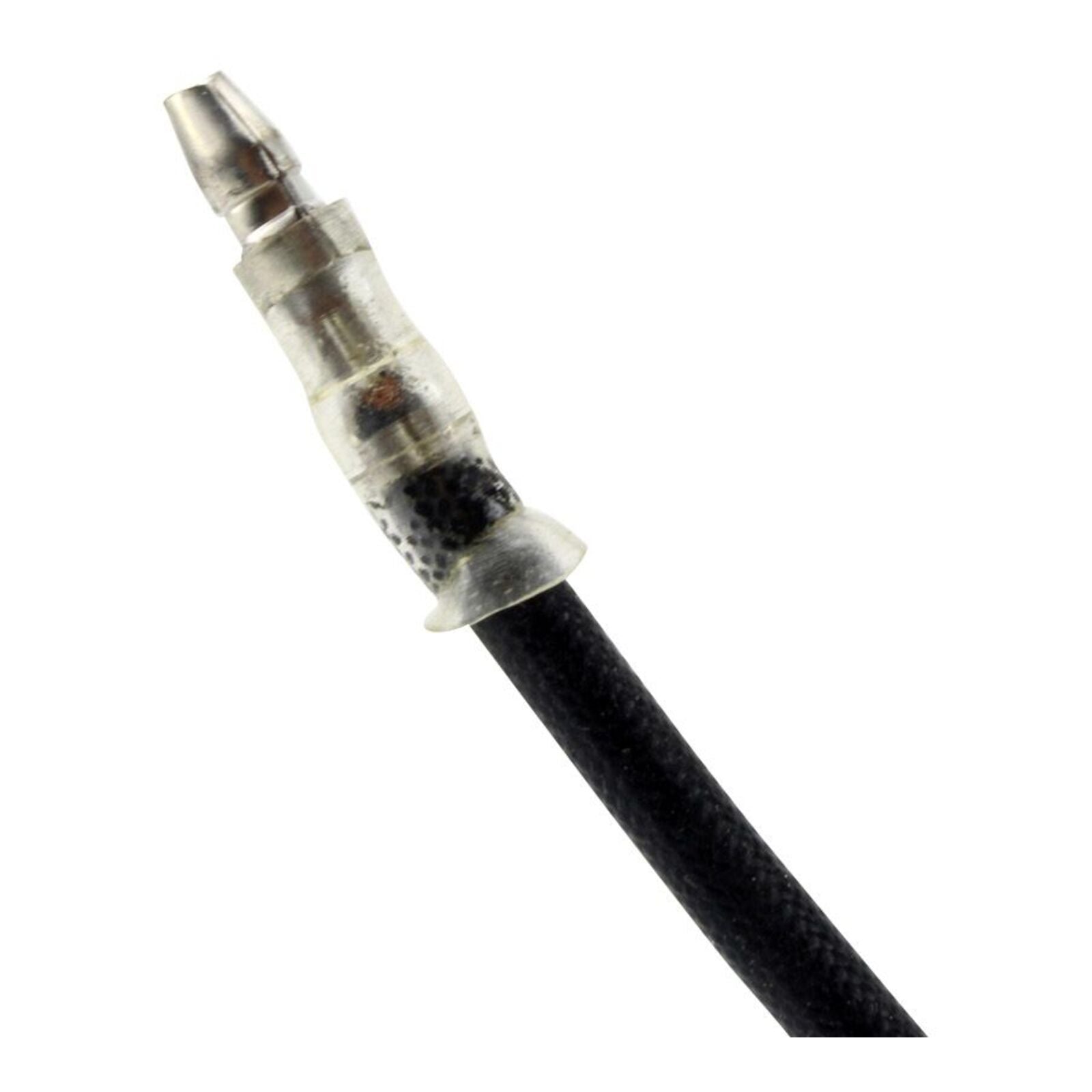

Connector included
-

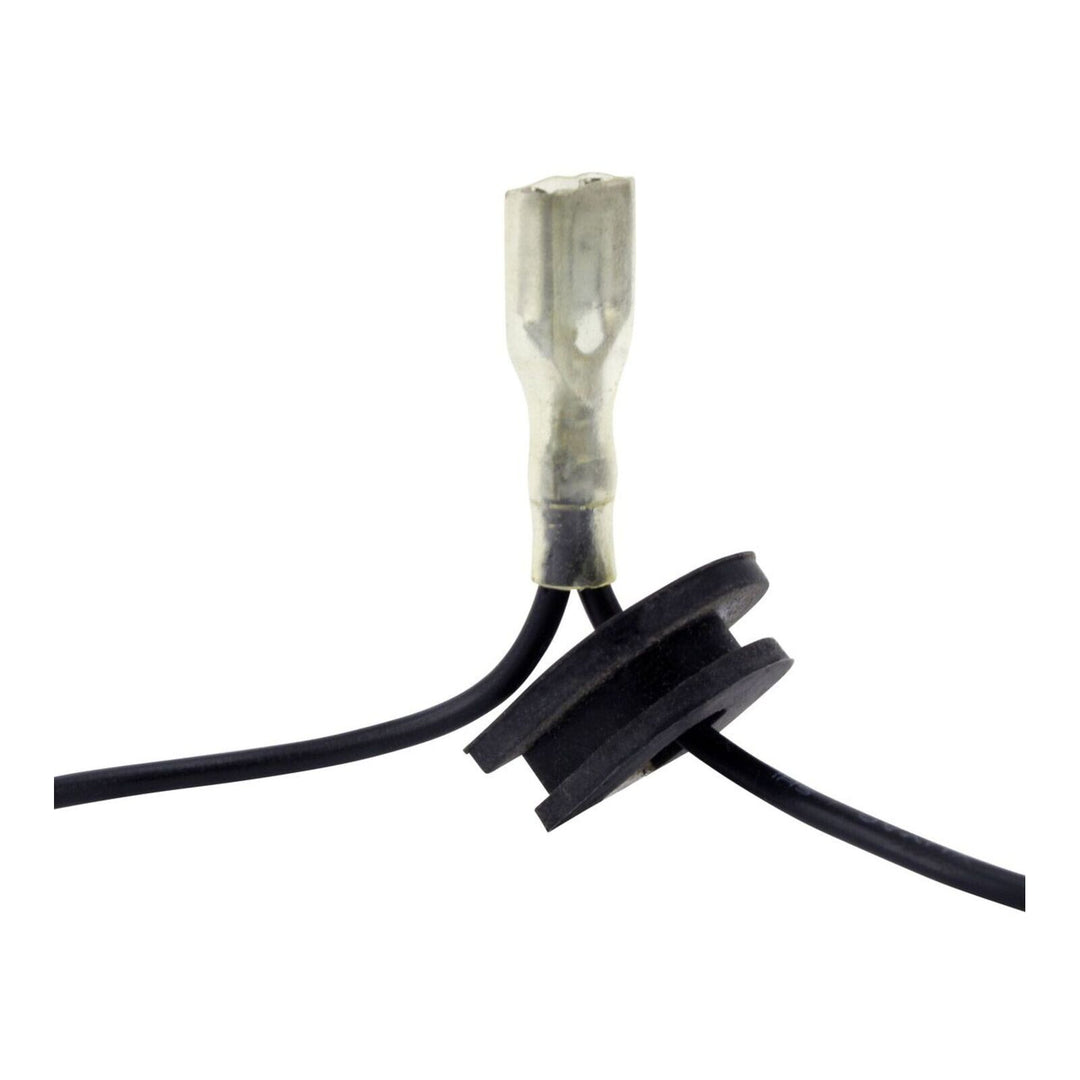

Rubber grommet included
Specifications:
- Length of wires stator to grommet: 75 mm
- Length of wires grommet to plug: 148 mm
Other specifications:
- Number of wires: 2
- Number of plugs: 2
Alternator:
- Black to ground: 4.5 ohms ±20%

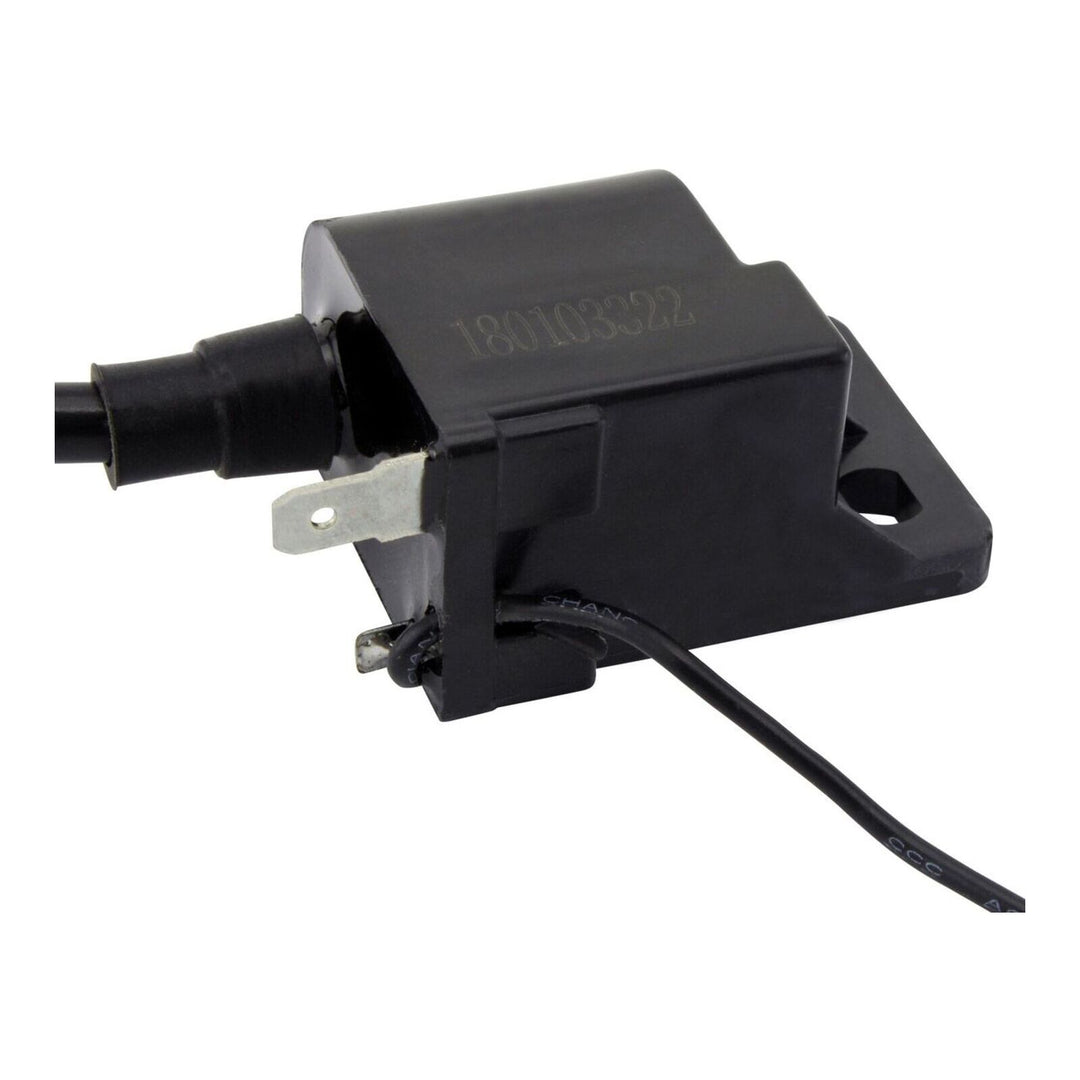

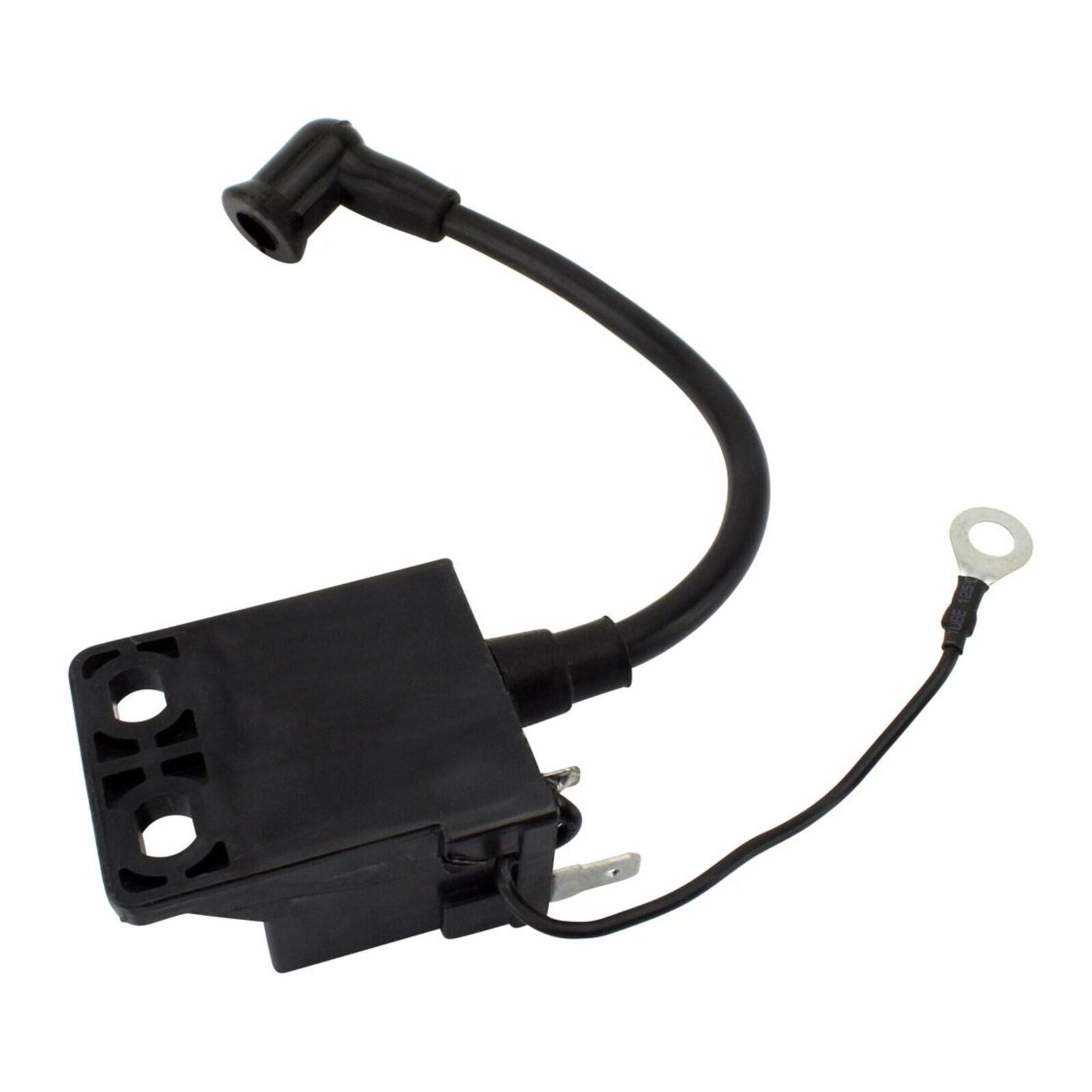

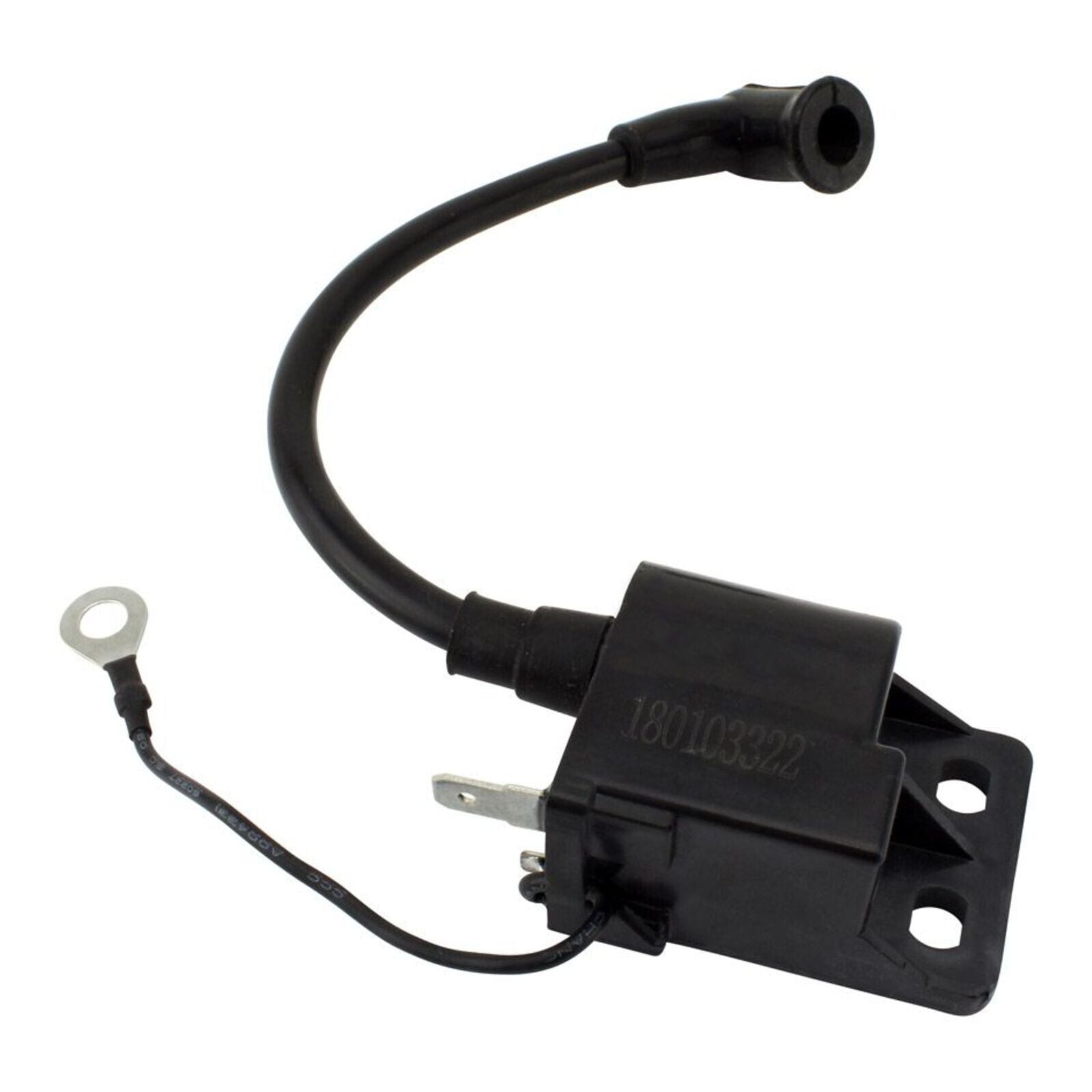

External Ignition Coil:
- Distance between fixation holes: 20 mm
- Wire Length: 51 mm
- Resistance: 6.1 ohms
Rotor Dimensions:
- Interior widest diameter: 12 mm
- Interior narrowest diameter: 12 mm
- Interior length: 19 mm
- Exterior Diameter: 36 mm
- Fixation holes centre to centre: 23 mm
