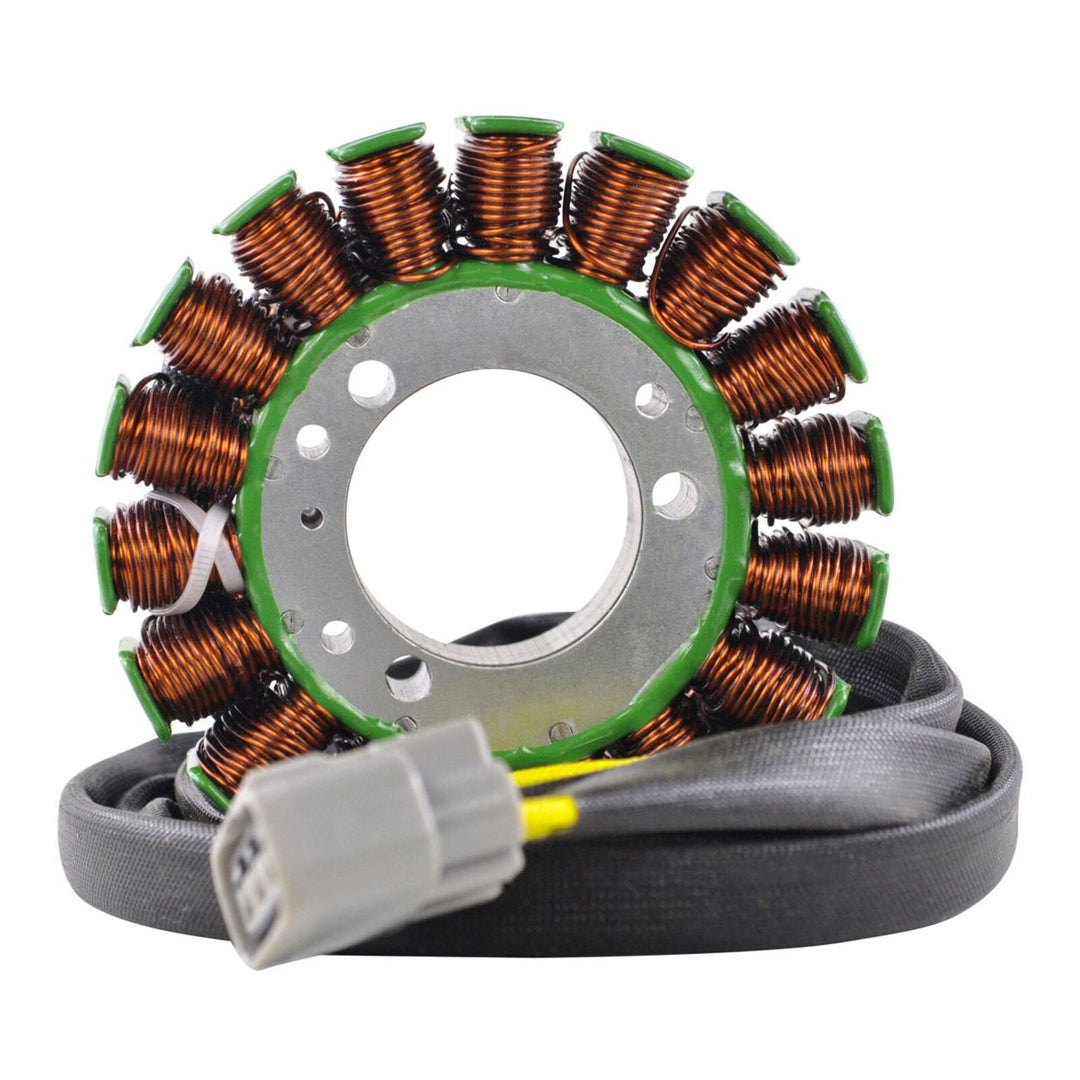

GENERATOR STATOR CAN-AM COMMANDER MAVERICK OUTLANDER

RMS01399

Regular price $429.99
/
Tax included.

Only 2 items in stock!

Features:

  • 650W
  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials.
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included.
  • Rubber grommet included.
  • All products shipped are tested.



Specifications:

Dimensions:

Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 24 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 1470 mm

Other specifications:

Wattage: 650
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18

Wire to wire resistance:
Alternator: Yellow to Yellow = 0.4 ohms +/-20%



Before installing your new stator:

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi- temp dielectric grease on all connectors

The new stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations.

This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If the new stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible, no less than 0.010’’.
