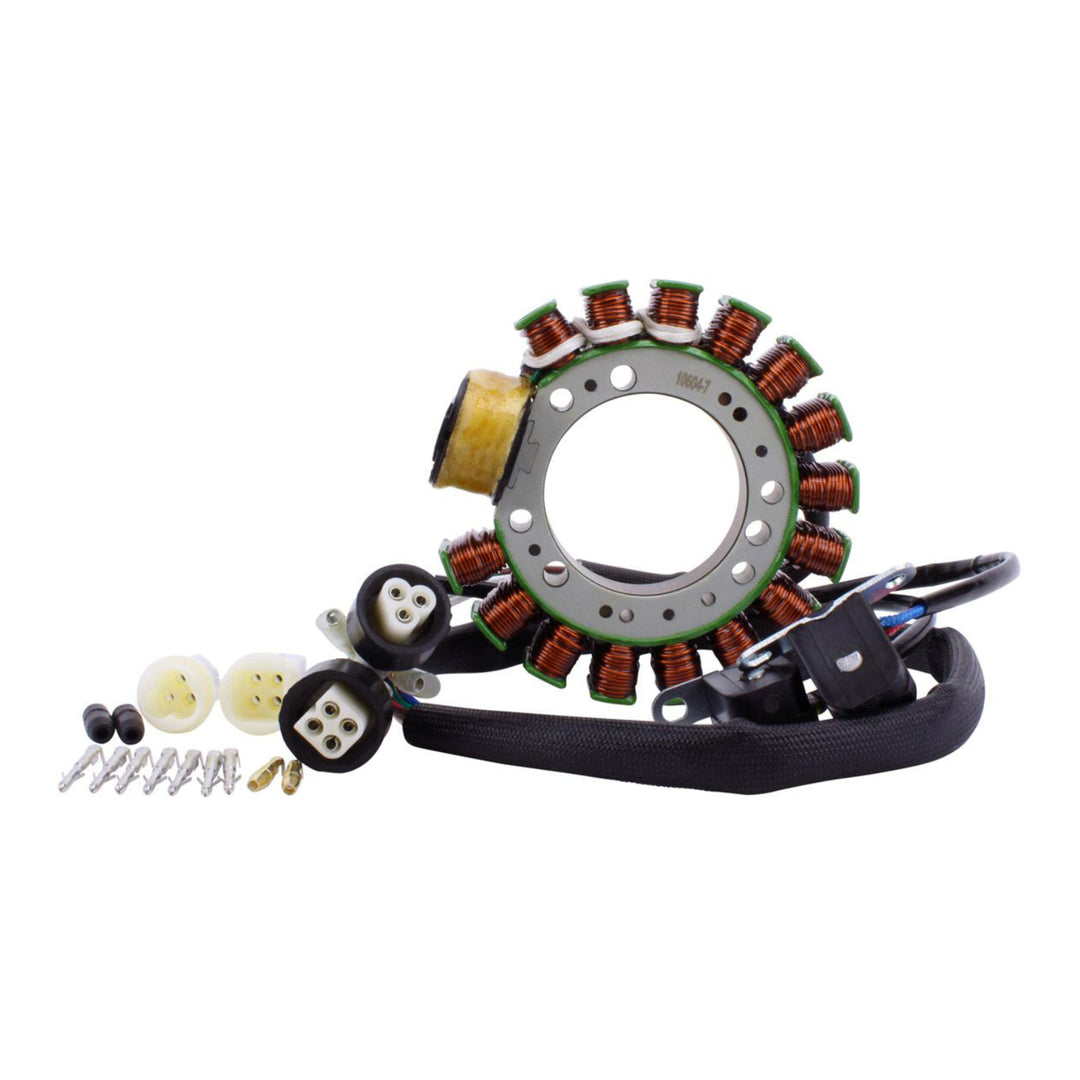

Brand new stator.
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest-grade lamination materials.
- Highest-grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included.
- Connector included.
- Rubber grommet included.
- All products shipped are tested.
Applications:
- YAM YFM350 BIG BEAR / WARRIOR 1987-1989 (RM01020)
Specifications:
- D imensions:
- Interior diameter: 53 mm
- Exterior diameter: 115 mm
- Thickness: 14 mm
- Length of wires stator to grommet: 200mm
- Length of wires grommet to plug: 475mm
- Length of wires pickup coil's wire to grommet: 220mm
- Other specifications:
- Number of wires : 9
- Number of plugs: 4
- Number of terminals : 9
- Wire to wire resistance:
- Alternator : White between each White = 0.4 ohms+/-20%
- Pick up : Red to Blue = 221 ohms+/-20%
- Pick up :Yellow to White = 217 ohms+/-20%
- Source : Brown to Green = 315 ohms+/-20%
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator:
Please note: The pick up coil with the white dot has to be installed on top
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
